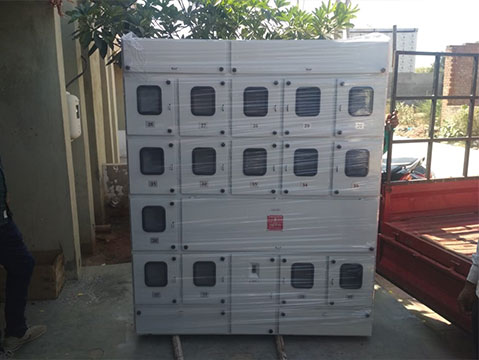

Building Single Phase/Three Phase Metering Panel
Being one of the renowned firms in the industry, we are decidedly involved in providing a High-quality array of Single Phase/Three Phase Metering Panel. Our offered panels are safe and most reliable as to provide optimum efficiency to The integrated equipment. Due to their easy operations and appropriate configuration, these are highly demanded across the Market.
The panels are constructed using superior quality sheet steel. All the fabricated parts are thoroughly cleaned using nine-tank pre-treatment process [involving degreasing, derusting, phosphatizing and passivation] and are then powder coated. The panel doors are fully gasketed for protection against dust / vermin entry.
Every component used in the panel is thoroughly supervised by qualified and skilled personnel, to ensure supply of quality product.
The front side of the panel houses meters, switches and other active devices. In case of control & relay panels, the relays are also mounted on the front side of the panel.
The front side of the panel and internal layout is made to suit ergonomic and aesthetic requirements. Adequate space is provided for cabling, operation and testing. The front side of the panel can have mimic diagrams like painted mimic with colours for voltages in line with standard / customer requirement which can be provided with indicating lights, control switches etc. for active display of system conditions.
Rigorous quality checks tests are done at various stages of manufacturing. On the completely assembled panel, routine tests as per IS:8623 are conducted.
Wiring is done with 1100-volt grade multi-stranded pvc wires. These wires are neatly bunched together with pvc cable ties for ease of working. The wiring at both ends is supported with self-locking ferrules and terminal strips for ease of cable termination. The panel is provided with an internal illumination lamp controlled by a toggle / door switch to facilitate maintenance work.
