Motor Control Centre (MCC)

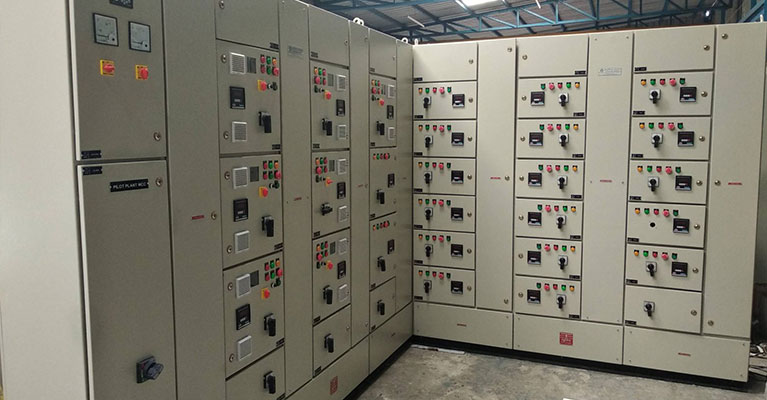

Our company is known for manufacturing and supplying precision engineered Industrial MCC Panels. These customized MCC Panels have created a higher demand among customers for having unmatched quality, excellent efficiency and long term durability. Designed to perfection, these are widely renowned for simple operation and low maintenance. These have the capacity to feed larger loads and are designed as per the client’s specifications. The MCC panels are conventional to the international standards and are available with multiple power stabs that help in supporting high capacity industrial motors.
We can provide number of vertical sections of motor control centers in different amps with mains and lug compartments. We provide controllers with manual or automatic means of starting or stopping the motor, selecting forward or reverse rotation, selecting and regulating the speed, regulating or limiting the torque and protecting against overloads or faults. We can make motor controllers with different features and complexities depending on the task that the motor will be performing.
Accutech Automation AA-2100 SERIES MCC an unique combination of innovative accessories, prefect workmanship and the highest available standard component resulting in SUPERIOR AESTHETIC LOOK, trouble free maintenance easy motor control centers , which are made in friendly accordance with international standards including IEC60934,60437,IS8623.
- AA -2101 – Single front, rear dead (front access only)
- AA – 2102 – Single front, rear access
- AA – 2121 _ double front
| Rated Insulator Voltage : | 660 Volts |
| Rated Operator Voltage : | 415V_+ 10% |
| RATED IMPULSE | |
|---|---|
| Withstand voltage : | 8-KV |
| Rated Current : | 400A, 630A, 800A, 1000A, 1250A, 1600A, 2000A, 3000A |
| Fault level : | 50KA for 1 Sec, 42KA for 1 sec, 35KA for 1 sec |
| Ambient Temp : | 50°C |
| Temp. Rise : | 35°C over ambient |
| Busbar Support : | SMC/FRP |
| Degree of protection : | IP-54 |
| Dimension (mm) : | H=1875/2175/2400, D=500 (Single front), =800(double front),W=multiple of 500+300mm) |
- Spacious arrangement is made for cable termination ensuring comfortable operation & easy maintenance.
- Panels are very sleek and aesthetics is excellent.
- Bolted modular construction facilities modification, retrofitting, extensibility in minimum possible time.
- Specially designed concealed profile of neoprene is used for gasketing to ensure dust protection.
- Use of quarter turnkey flush type steel door locks for convenient operation.
- Each panel is provided with plastic drawing pocket to house relevant drawings.
- Metallic/transparent barriers are provided, within the cubicle for prevention of human contact with live part accidentally.
- All covers, doors inter panel jointing are provided with neoprene gasket for perfect duct protection.
- A perfect compartmentalized construction.
- High quality epoxy powder coated switch boards to with stand corrosive environment and long lasting elegant door.
- Specially designed concealed profile of neoprene is used for gasketing to ensure dust protection.
- Nylon terminals are used with suitable accessories like TERMINALS HEATER, MARKERS STOPPER, and CT SHORTING TERMINALS etc.
- Wiring bunch is laid down in PVC DUCTS and arranged to give double safety by using SPIRAL/FLEXIBLE CONDUCT. All components are marked with INTERNAL LEGENDS; legends are made out of trifoliate sheet to depict feeder designation even in rear cable chamber also. Control circuit is powered by DRAW TYPE FUSE or MCB.
- Every incomer panel is provided with drawing pocket for ready reference of control schemes.
- Power and control wiring bunches are carried in vertical cable alley DIN CHANNEL is provided to accommodated NYLON COLOUREDE POWER TERMINAL AND CONTROL TERMINALS, represented by markers & headers. Transparent shroud are provided in incoming side to avoid accidental contact in case door is opened.
